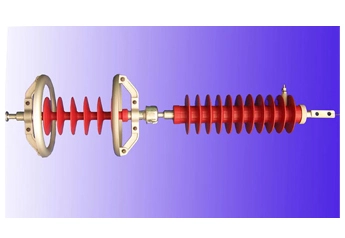

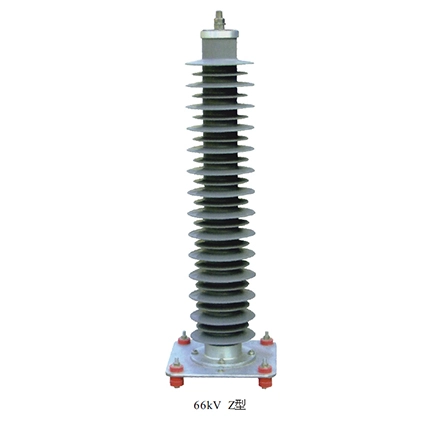

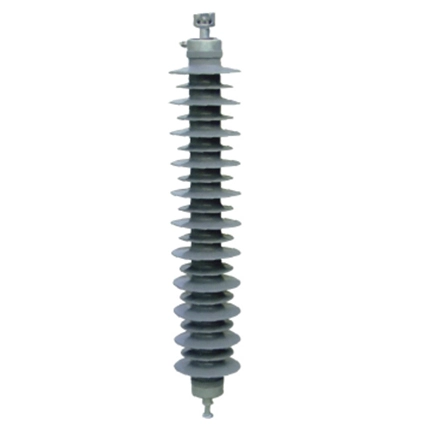

66kV Surge Arrester

Features of YF POWER 66kV Lightning Surge Arrester

• Enhanced electrical performance and reliability

• Ease of installation with lightweight and compact dimensions

• Resistant to explosions and shattering, less mechanical damage

• Improved performance in polluted environments

• Built to resist vandalism

• Moisture-proof construction

• Increased safety standards & mechanical strength

• UV radiation resistant

• Highly resistant to ozone and corona effects

• Excellent tracking resistance

• Optimal operational conditions




The Working Principle of 66Kv Surge Arresters

The working principle of 66kV surge arresters revolves around their ability to protect electrical equipment and communication lines from high-voltage surges. When operating under normal conditions, where voltage levels are within standard limits, the surge arrester remains passive, essentially creating an open circuit to the ground.

However, when a sudden surge of high voltage occurs—potentially endangering the insulation of the equipment—the 66kV surge arrester swiftly responds. It conducts the excess current to the ground, thereby limiting the amplitude of the voltage surge. This action helps prevent damage to the communication cables and equipment by diverting the harmful electrical energy away from sensitive components.

Once the transient overvoltage subsides, the 66kV surge arrester resets automatically to its initial state. This ensures that the communication line can resume normal operation without any residual effects from the surge event. The effectiveness of 66kV surge arresters lies in their rapid response to protect against voltage spikes and their ability to maintain the integrity and reliability of electrical systems during transient events.

The Function of 66Kv Surge Arresters in Communication Equipment Protection

When the communication cable or equipment is operating under normal operating voltage, the 66kV surge arrester will not have an effect, and it is regarded as an open circuit for the ground. Once a high voltage occurs, and the insulation of the protected equipment is endangered, the arrester immediately acts to direct the high-voltage inrush current to the ground, thereby limiting the voltage amplitude and protecting the communication cable and equipment insulation. When the overvoltage disappears, the 66 kv lightning arrester quickly returns to its original state and makes the communication line work normally.

What is the lightning arrester rating for 66kV?

The lightning arrester rating for 66kV systems is essential to ensure effective protection against lightning-induced surges. At YF POWER, we offer a range of 66kV surge arresters specifically designed for this voltage level. Our 66kV lightning arresters are built to withstand high voltage surges and divert excessive electrical energy to the ground, safeguarding your equipment and ensuring the smooth operation of your electrical system. Discover more about our 66kV surge arrester solutions on our website to secure your substation from potential lightning damage.
