FPQ-2/2T12 2kV Pin Insulators

Select composite pin insulator suppliers with qualifications and strong technical strength; The requirements for suppliers are that they must be qualified, have a large number of supply performance and rich experience in the industry, and be able to continuously improve and perfect products; strong technical strength can ensure the long-term stability of the supply of mandrels and fittings. It is possible to conduct on-the-spot inspections to understand its latest developments, technologies, and production status, and finally determine reliable suppliers.

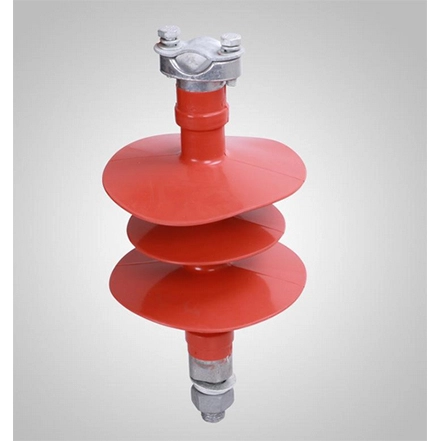

pin insulator types

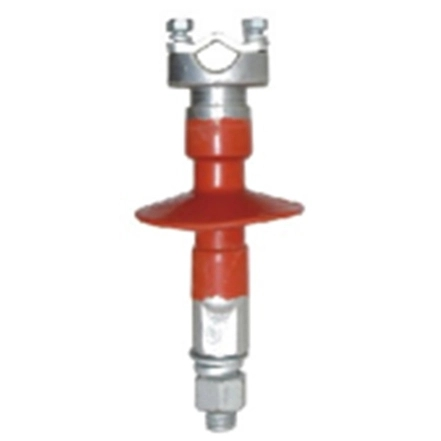

pin insulator types

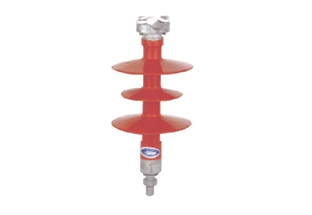

pin insulator types
pin insulator types

Specifications of FPQ-2/2T12 2kV Composite Pin Insulators

TypeFPQ-2/2T12
Rated bent withstand load (kN)2
Height (mm)90
Max. diameter of insulated parts (mm)90
Min. Creepage distance (mm)50
Min. Nominal creepage distance (mm)110
Downward bolt thread diameter (mm)12
Rated voltage (kV)2
The highest voltage of equipment (kV)2
1min power frequency wet withstand voltage not less than (kV)5
Full wave lightning impulse withstand voltage(peak value) not less than (kV)25
