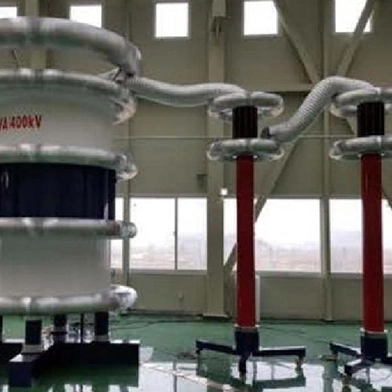

AC Resonance Test System (Variable Inductance)

Name: AC Resonance Test System (Variable Inductance)
Brand: Guangdong Yufeng Industries Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

It is specially designed for high capacitive load tests, for example, power cables, power capacitors, GIS, bushing, and other test objects, and it can be applied for factory tests & type tests, and other application situations. Product design conforms to the IEC standard.

GET A QUOTE

Features of AC Resonance Test System (Variable Inductance)

With module structure designing, it is very flexible to have serial or parallel connections for meeting kinds of applications.
With high Q-value designing.
.With powerful overvoltage protection and high safety design for operation.
With a digital control system, optical fiber communication, and excellent EMC design.
With non-pd design and high reliability.

Main Components of AC Resonance Test System (Variable Inductance)

The variable inductance of cylinder or tank type of reactor
High voltage divider and coupling capacitor
HV filter
Regulating transformer
Excitation transformer
Digital control system

System Model Sheet of AC Resonance Test System (Variable Inductance)

MODEL	CAPACITY	RATING VOLTAGE	RATING CURRENT	FREQUENCY
SLYDK-1040/260	1040kVA	260kV	4A	50Hz
SLYDK-900/300	900kVA	300kV	3A	50Hz
SLYDK-1800/300	1800kVA	300kV	6A	50Hz
SLYDK- 1200/400	1200kVA	400kV	3A	50Hz
SLYDK-1600/400	1600kVA	400kV	4A	50Hz
SLYDK- 2000/400	2000kVA	400kV	5A	50Hz
SLYDK-3000/2X300	3000kVA	600kV	5A	50Hz
SLYDK- 3600/2X300	3600kVA	600kV	6A	50Hz

(Note: Upper is just for reference, additional models can be customized according to customer requirements)
