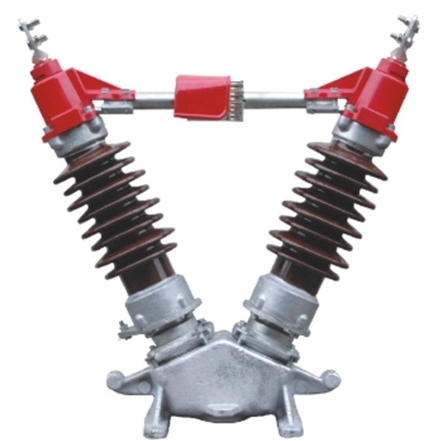

HV Disconnector GW5

This series of isolating switches meets the name requirements specified in GB1985-89 "AC High Voltage Isolating Switches", IEC129(1984) "AC Isolating Switches and Earthing Switches" and IEC694(1980) "Common Items for High Voltage Switchgear and Control Equipment".

GET A QUOTE



Specifications of HV Disconnector GW5

Type	General type (anti-pollution type)
Rated Voltage (V)	40.5 72.5 126


Rated current (A)	630
	1000
	1250
	1600 2000

Isolation switch	Rated peak withstand current (KA)	50

		80

	Rated short-time withstand current (KA)	20(4s)
		31.5(4s)
		31.5(4s)

Earthing switch	Rated peak withstand current (KA)	50
		80
	Rated short-time withstand current (KA)	20 (4s)
		31.5(4s)
	Earthing switch	Not grounded single ground double ground

Conditions of Use for HV Disconnector GW5

1. Altitude: ≥2000m;

2. Ambient temperature: -30°C -40°C, in alpine regions ≥ -40°C;

3. Wind speed: ≤35m/s;

4. Earthquake intensity: ≤8°;

5. Icing thickness: ≤10mm;

6. The installation site should be free of flammable and explosive materials, chemical corrosion and severe vibration; 7. Pollution level of post insulators: ordinary type is level 0, and the anti-pollution type is level Ⅱ;
