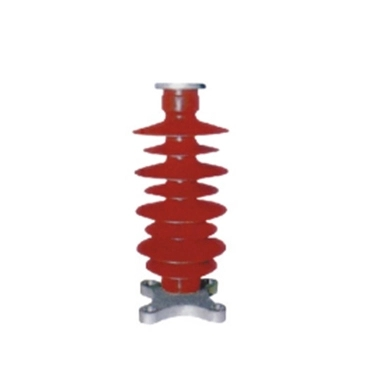

FQJ3-25/6 25kV Locomotive Insulators

Grind the mandrel of FQJ3-25/6 25kV locomotive insulators to improve the grinding accuracy, especially in the crimping area; clean the metal fittings one by one to ensure the cleanliness of the inner hole; match the mandrel with the fittings, and use a tight fit to achieve the effect of "drawing the wind".


composite insulator manufacturers

Specifications of FQJ3-25/6 25kV Locomotive Insulators

Type

FQJ3-25/6

Rated Voltage (KV)25
Rated mechanical load (KN)6
Structural height (mmm±10)400±5
Composite distance (mm)310
Min. nominal creepage distance (mm)1000
Lightning impulse voltage (peak value) (kV)180
1min power frequency wet withstand voltage (kV)80


Please Contact YF Power!

Find Quality Surge Arrester, RTV Antifouling Coatings,Compression Moulding Machine, MOV Blocks, Composite Insulator, Silicone Rubber for Electric, Drop Out Fuse Cutout Switch, Distributed Fault Location System For Overhead Lines from YF Power.
