AC Test Transformer System (GAS Insulated Type)

Name: AC Test Transformer System (GAS Insulated Type)
Brand: Guangdong Yufeng Industries Co., Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

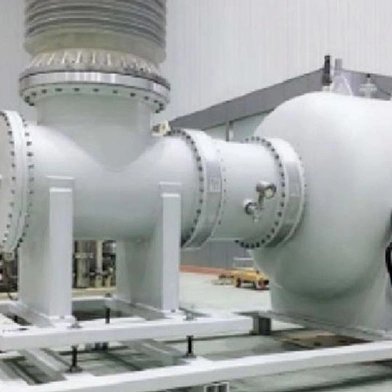

SF6 insulated HV transformer test system is not needed too much space for a testing field and is designed for the GIS factory test and partial discharge test, and GIS instrument transformer test. Product design conforms to the IEC standard. and SF6 insulated test system using is convenient and can be directly connected to the GIS test object by a flange.

GET A QUOTE

Features of AC Test Transformer System (GAS Insulated Type)

Up to 800kV SF6 gas-insulated test system
Compact volume, no need for too much space for testing field
Strongly ability to suit to be widely used in different environments, more convenient than normal test transformer system
Reliability for long-term running with low PD
Without a special testing hall, saving space
With non-pd design and high reliability

Main Components of AC Test Transformer System (GAS Insulated Type)

Gas-insulated test transformer
Switch cabinet
Power filter& HV filter
Voltage regulator
Digital control& measuring system

System Model Sheet of AC Test Transformer System (GAS Insulated Type)

MODEL	CAPACITY	RATING VOLTAGE	RATING CURRENT	FREQUENCY
SUJQ-100/100	100KVA	100kV	1A	50Hz
SUJQ-150/150	150KVA	150kV	1A	50Hz
SUJQ-175/350	175KVA	300kV	0.5A	50Hz
SUJQ-400/400	400KVA	400kV	1A	50Hz
SUJQ-500/500	500KVA	500kV	1A	50Hz
SUJQ-600/600	600KVA	600kV	1A	50Hz
SUJQ-400/800	800KVA	800kV	1A	50Hz
SUJQ-1600/800	1600KVA	800kV	2A	50Hz

(Note: Upper is just for reference, additional models can be customized according to customer requirements)
